DNV 2.7.1/EN 12079-1 Contenedores Marítimos Offshore
Los nuevos contenedores offshore DNV están construidos de acuerdo a las normas DNV 2.7.1/EN 12079-1.
Estos contenedores están especialmente diseñados para las industrias del gas y del petróleo en alta mar.
Este tipo de contenedores están fabricados para aguantar las duras exigencias en alta mar, siendo mucho más robustos y resistentes. Gracias a este diseño pueden soportar las condiciones climatológicas más extremas.
Nuestros contenedores cumplen con la más estricta legislación y con todas las medidas de seguridad.
TITAN Containers continua ampliando la gama de productos DNV 2.7.1 por lo que consigue aumentar también los servicios de alquiler y venta en nuevos mercados.
DNV-Containers.com es una marca de TITAN Containers.

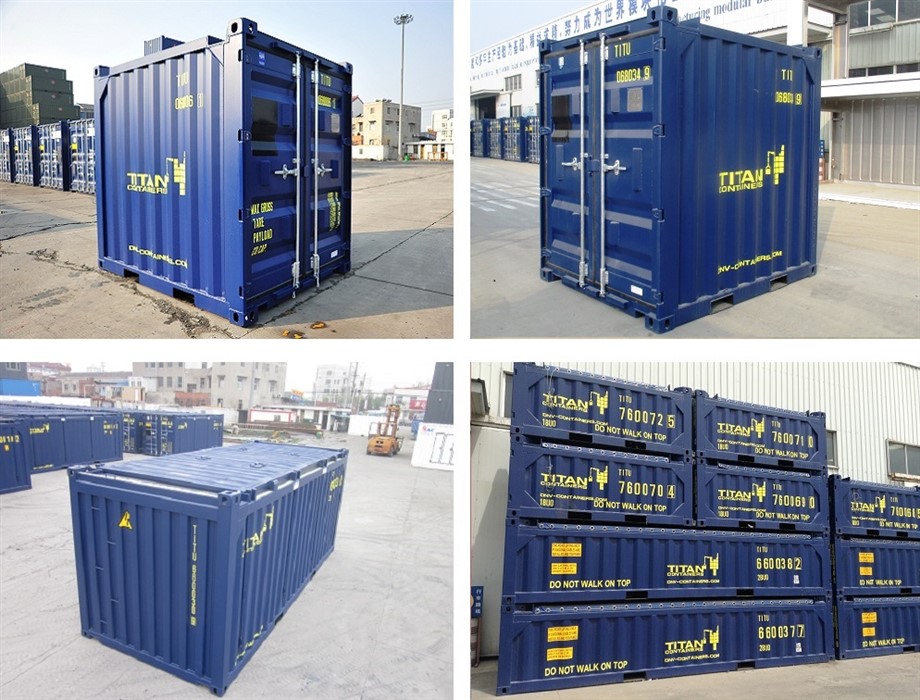

El Programa de los Contenedores offshore de TITAN CCU/DNV incluye lo siguiente:
| |
6ft |
8ft |
10ft |
20ft |
40ft |
| DNV Contenedores estandar |
SI |
SI |
SI |
SI |
|
| DNV Contenedores refrigerados |
|
|
SI |
SI |
|
| DNV ½ altura open top CCU |
|
|
SI |
SI |
|
| DNV soft top open top (con lona) |
|
|
SI |
SI |
|
| DNV Open top - hard top |
|
|
SI |
SI |
|
Brochure
TITAN offshore 2017
5' - CCU Mini container
| |
Length mm |
Width mm |
Height mm |
| External |
1,690 |
1.960 |
2.770 |
| Internal |
1.480 |
1.740 |
2.410 |
| Tare weight |
1700 kgs |
|
|
| Cargo |
4000 kgs |
|
|
| Maximum |
5700 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
- Built and certified DNV 2.7-1 EN 12079-1
6' CCU - standard container
| |
Length mm |
Width mm |
Height mm |
| External |
1,830 |
1,830 |
2,438 |
| Internal |
1,668 |
1,738 |
2,169 |
| Tare weight |
1500 kgs |
|
|
| Cargo |
2500 kgs |
|
|
| Maximum |
4000 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
8' CCU - standard container
| |
Length mm |
Width mm |
Height mm |
| External |
2,438 |
1,968 |
2,591 |
| Internal |
2,276 |
1,876 |
2,322 |
| Tare weight |
1560 kgs |
|
|
| Cargo |
2440 kgs |
|
|
| Maximum |
4000 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
10' CCU - standard container
| |
Length mm |
Width mm |
Height mm |
| External |
2,991 |
2,438 |
2,591 |
| Internal |
2,829 |
2346 |
2,381 |
| Tare weight |
1960 kgs |
|
|
| Cargo |
9540 kgs |
|
|
| Maximum |
11500 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
10' CCU - hard top open top - lift off roof
| |
Length mm |
Width mm |
Height mm |
| External |
2,991 |
2,438 |
2,591 |
| Internal |
2,829 |
2,346 |
2,251 |
| Tare weight |
2600 kgs |
|
|
| Cargo |
10400 kgs |
|
|
| Maximum |
13000 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
10' CCU - open top with tarpaulin
| |
Length mm |
Width mm |
Height mm |
| External |
2,991 |
2,438 |
2,591 |
| Internal |
2,833 |
2,344 |
2,250 |
| Tare weight |
2200 kgs |
|
|
| Cargo |
7800 kgs |
|
|
| Maximum |
10000 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
10' CCU - ½ height open top with tarpaulin or bin container
| |
Length mm |
Width mm |
Height mm |
| External |
2,991 |
2,438 |
1,280 |
| Internal |
2,833 |
2,344 |
.940 |
| Tare weight |
1700 kgs |
|
|
| Cargo |
8460 kgs |
|
|
| Maximum |
10160 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Suitable for use with or without tarpaulins
- End doors
- Built and certified DNV 2.7-1 EN 12079-1
10' CCU - ½ height basket/bin
| |
Length mm |
Width mm |
Height mm |
| External |
2-991 |
2,438 |
1.280 |
| Internal |
2.760 |
2.250 |
0.990 |
| Tare weight |
1700 kgs |
|
|
| Cargo |
10000 kgs |
|
|
| Maximum |
11.700 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
- Built and certified DNV 2.7-1 EN 12079-1
10' CCU - refrigerated container
| |
Length mm |
Width mm |
Height mm |
| External |
2,991 |
2,438 |
2,591 |
| Internal |
2,381 |
2,284 |
2,261 |
| Tare weight |
2980 kgs |
|
|
| Cargo |
7820 kgs |
|
|
| Maximum |
10800
kgs
|
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- -40c to + 30c thermostat controlled
- Modern power efficient marine refrigeration
- Hygienic stainless steel interior with aluminium T section floors
- Built and certified DNV 2.7-1 EN 12079-1
20' CCU - standard container
| |
Length mm |
Width mm |
Height mm |
| External |
6,058 |
2,438 |
2,591 |
| Internal |
5,896 |
2,346 |
2,352 |
| Tare weight |
2970 kgs |
|
|
| Cargo |
13530 kgs |
|
|
| Maximum |
16500 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
20' CCU - standard container with doors in both ends
| |
Length mm |
Width mm |
Height mm |
| External |
6,058 |
2,438 |
2,591 |
| Internal |
5,844 |
2,346 |
2,352 |
| Tare weight |
3600 kgs |
|
|
| Cargo |
12900 kgs |
|
|
| Maximum |
16500 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
20' CCU - standard container high cube
| |
Length mm |
Width mm |
Height mm |
| External |
6,058 |
2,438 |
2,896 |
| Internal |
5,896 |
2,346 |
2,686 |
| Tare weight |
3290 kgs |
|
|
| Cargo |
13200 kgs |
|
|
| Maximum |
16500 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
20' CCU - hard top open top - lift off roof
| |
Length mm |
Width mm |
Height mm |
| External |
6,058 |
2,438 |
2,591 |
| Internal |
5,896 |
2,346 |
2,251 |
| Tare weight |
4180 kgs |
|
|
| Cargo |
12320 kgs |
|
|
| Maximum |
16500 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Built and certified DNV 2.7-1 EN 12079-1
20' CCU - Open top with tarpaulin
| |
Length mm |
Width mm |
Height mm |
| External |
6,058 |
2,438 |
2,591 |
| Internal |
5,896 |
2,240 |
2,360 |
| Tare weight |
3700 kgs |
|
|
| Cargo |
12000 kgs |
|
|
| Maximum |
15700 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
- Built and certified DNV 2.7-1 EN 12079-1
20' CCU - ½ height open top with tarpaulin or bin container
| |
Length mm |
Width mm |
Height mm |
| External |
6,058 |
2,438 |
1,280 |
| Internal |
5,896 |
2.346 |
.940 |
| Tare weight |
2490 kgs |
|
|
| Cargo |
14010 kgs |
|
|
| Maximum |
16500 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- Suitable for use with or without tarpaulins
- End doors
- Built and certified DNV 2.7-1 EN 12079-1
20' CCU - ½ height basket/bin
| |
Length mm |
Width mm |
Height mm |
| External |
6,058 |
2,438 |
1,280 |
| Internal |
5,860 |
2.150 |
0,.900 |
| Tare weight |
2900 kgs |
|
|
| Cargo |
13100 kgs |
|
|
| Maximum |
16000 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
- Side doors
- Built and certified DNV 2.7-1 EN 12079-1
20' CCU - refrigerated container
| |
Length mm |
Width mm |
Height mm |
| External |
6,058 |
2,438 |
2,591 |
| Internal |
5,448 |
2,284 |
2,261 |
| Tare weight |
4380 kgs |
|
|
| Cargo |
9820 kgs |
|
|
| Maximum |
14200 kgs |
|
|
| Dimensions are indicative and may vary according to series and specifications |
Picture gallery
- Higher level door handles for easier site operations on many units.
- -40c to + 30c thermostat controlled
- Modern power efficient marine refrigeration
- Hygienic stainless steel interior with aluminium T section floors
- Built and certified DNV 2.7-1 EN 12079-1
