NEW AND USED DNV EN 2.7.1 OFFSHORE CCU/CONTAINERS FOR SALE

We offer a wide range of DNV offshore containers and CCUs for sale worldwide. Many types are available for prompt pick up from our depots in Asia, Middle East, Europe and The Americas

Sizes: 5' - 6' - 8' - 10' - 20' - 40' - bespoke

Types include: CCU - Open Top - ½ height - Hard Top - Bin - Reefer

Brochure



TITAN offshore 2017

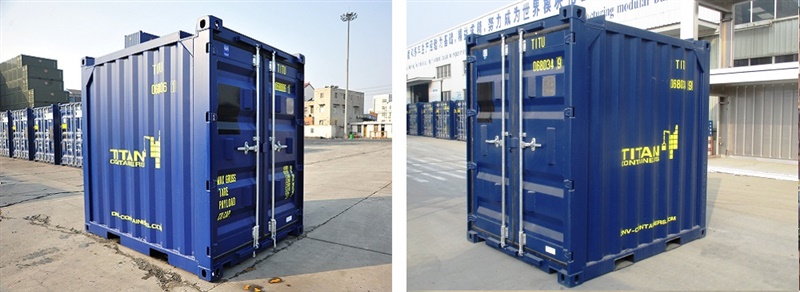

5' - CCU Mini container



  Length mm Width mm  Height mm
External 1,690 1.960 2.770
Internal 1.480 1.740 2.410
Tare weight  1700 kgs
Cargo  4000 kgs
Maximum  5700 kgs
Dimensions are indicative and may vary according to series and specifications





  • Built and certified DNV 2.7-1 EN 12079-1





6' CCU - standard container



  Length mm Width mm  Height mm
External 1,830 1,830 2,438
Internal 1,668 1,738 2,169
Tare weight  1500 kgs
Cargo  2500 kgs
Maximum  4000 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1





8' CCU - standard container



  Length mm Width mm  Height mm
External 2,438 1,968 2,591
Internal 2,276 1,876 2,322
Tare weight  1560 kgs
Cargo  2440 kgs
Maximum 4000 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1

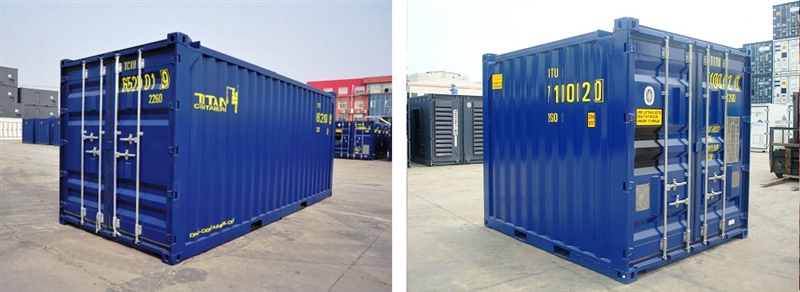

10' CCU - standard container



  Length mm Width mm  Height mm
External 2,991 2,438 2,591
Internal 2,829 2346 2,381
Tare weight  1960 kgs
Cargo  9540 kgs
Maximum 11500 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1





10' CCU - hard top open top - lift off roof



  Length mm Width mm  Height mm
External 2,991 2,438 2,591
Internal 2,829 2,346 2,251
Tare weight  2600 kgs
Cargo  10400 kgs
Maximum  13000 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1





10' CCU - open top with tarpaulin



  Length mm Width mm  Height mm
External 2,991 2,438 2,591
Internal 2,833 2,344 2,250
Tare weight  2200 kgs
Cargo  7800 kgs
Maximum  10000 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1

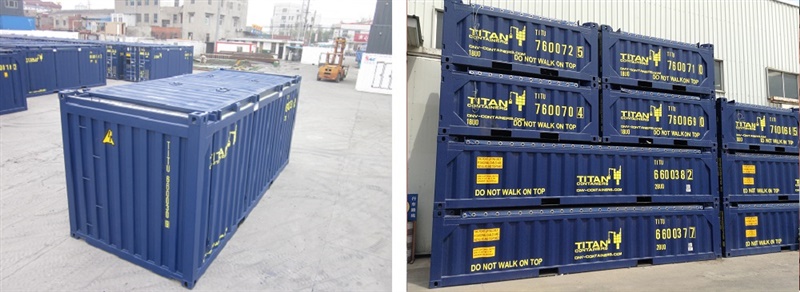

10' CCU - ½ height open top with tarpaulin or bin container



  Length mm Width mm  Height mm
External 2,991 2,438 1,280
Internal 2,833 2,344 .940
Tare weight  1700 kgs
Cargo  8460 kgs
Maximum  10160 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Suitable for use with or without tarpaulins
  • End doors
  • Built and certified DNV 2.7-1 EN 12079-1





10' CCU - ½ height basket/bin



  Length mm Width mm  Height mm
External 2-991 2,438 1.280
Internal 2.760 2.250 0.990
Tare weight  1700 kgs
Cargo  10000 kgs
Maximum  11.700 kgs
Dimensions are indicative and may vary according to series and specifications





  • Built and certified DNV 2.7-1 EN 12079-1

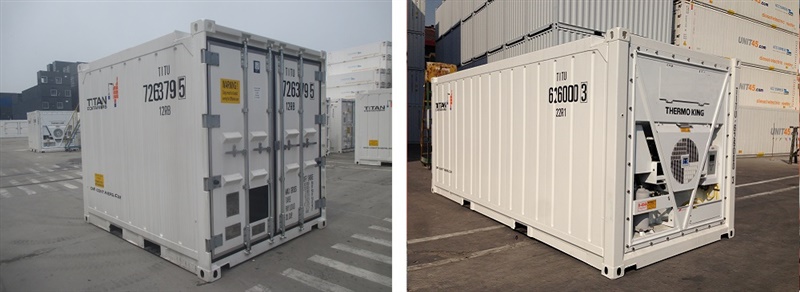

10' CCU - refrigerated container



  Length mm Width mm  Height mm
External 2,991 2,438 2,591
Internal 2,381 2,284 2,261
Tare weight  2980 kgs
Cargo  7820 kgs
Maximum

 10800

kgs


Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • -40c to + 30c thermostat controlled
  • Modern power efficient marine refrigeration
  • Hygienic stainless steel interior with aluminium T section floors
  • Built and certified DNV 2.7-1 EN 12079-1





20' CCU - standard container



  Length mm Width mm  Height mm
External 6,058 2,438 2,591
Internal 5,896 2,346 2,352
Tare weight  2970 kgs
Cargo  13530 kgs
Maximum  16500 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1





20' CCU - standard container with doors in both ends

  Length mm Width mm  Height mm
External 6,058 2,438 2,591
Internal 5,844 2,346 2,352
Tare weight  3600 kgs
Cargo  12900 kgs
Maximum  16500 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1





20' CCU - standard container high cube



  Length mm Width mm  Height mm
External 6,058 2,438 2,896
Internal 5,896 2,346 2,686
Tare weight  3290 kgs
Cargo  13200 kgs
Maximum  16500 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1





20' CCU - hard top open top - lift off roof



  Length mm Width mm  Height mm
External 6,058 2,438 2,591
Internal 5,896 2,346 2,251
Tare weight  4180 kgs
Cargo  12320 kgs
Maximum  16500 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Built and certified DNV 2.7-1 EN 12079-1





20' CCU - Open top with tarpaulin



  Length mm Width mm  Height mm
External 6,058 2,438 2,591
Internal 5,896 2,240 2,360
Tare weight  3700 kgs
Cargo  12000 kgs
Maximum  15700 kgs
Dimensions are indicative and may vary according to series and specifications





  • Built and certified DNV 2.7-1 EN 12079-1





20' CCU - ½ height open top with tarpaulin or bin container



  Length mm Width mm  Height mm
External 6,058 2,438 1,280
Internal 5,896 2.346 .940
Tare weight  2490 kgs
Cargo  14010 kgs
Maximum  16500 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • Suitable for use with or without tarpaulins
  • End doors
  • Built and certified DNV 2.7-1 EN 12079-1





20' CCU - ½ height basket/bin



  Length mm Width mm  Height mm
External 6,058 2,438 1,280
Internal 5,860 2.150 0,.900
Tare weight  2900 kgs
Cargo  13100 kgs
Maximum  16000 kgs
Dimensions are indicative and may vary according to series and specifications





  • Side doors
  • Built and certified DNV 2.7-1 EN 12079-1





20' CCU - refrigerated container



  Length mm Width mm  Height mm
External 6,058 2,438 2,591
Internal 5,448 2,284 2,261
Tare weight  4380 kgs
Cargo  9820 kgs
Maximum  14200 kgs
Dimensions are indicative and may vary according to series and specifications



Picture gallery

  • Higher level door handles for easier site operations on many units.
  • -40c to + 30c thermostat controlled
  • Modern power efficient marine refrigeration
  • Hygienic stainless steel interior with aluminium T section floors
  • Built and certified DNV 2.7-1 EN 12079-1





⌃
